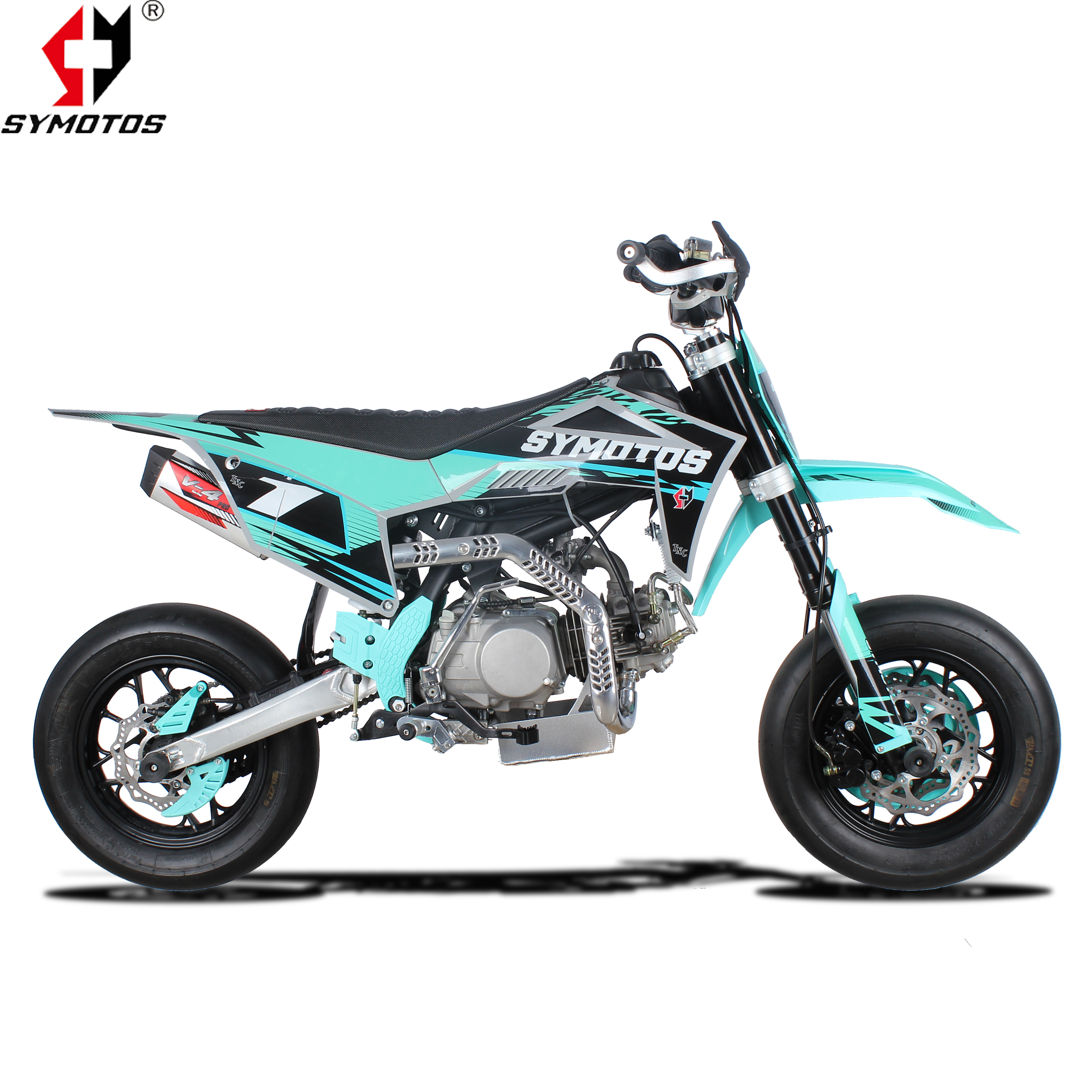

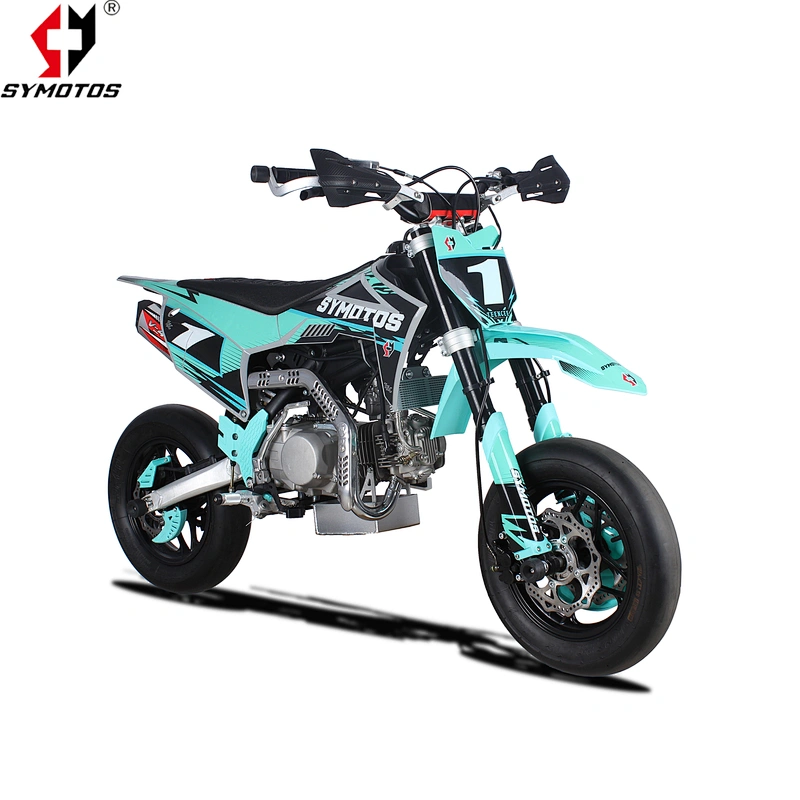

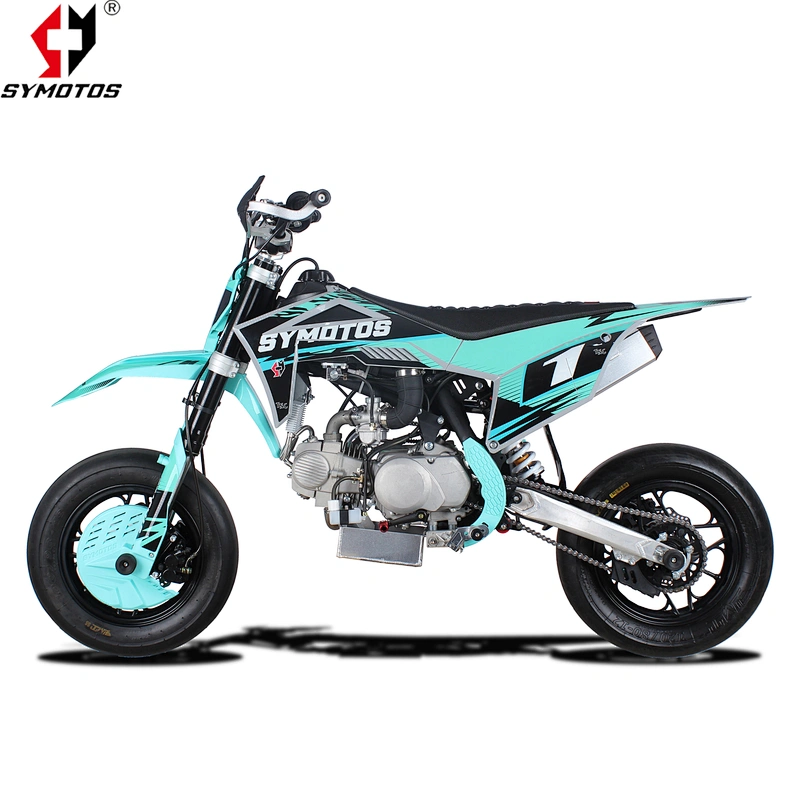

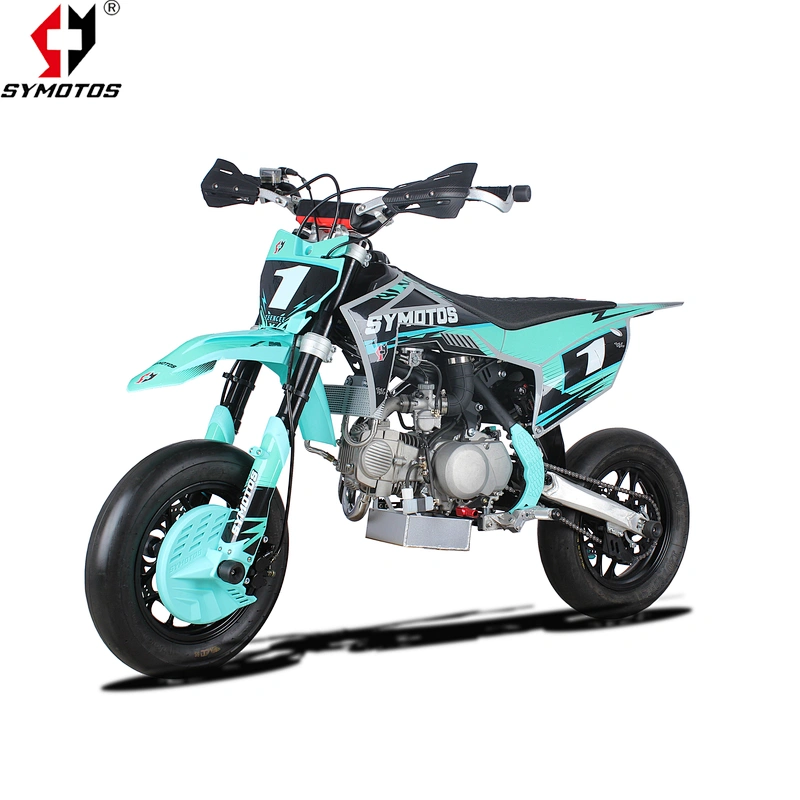

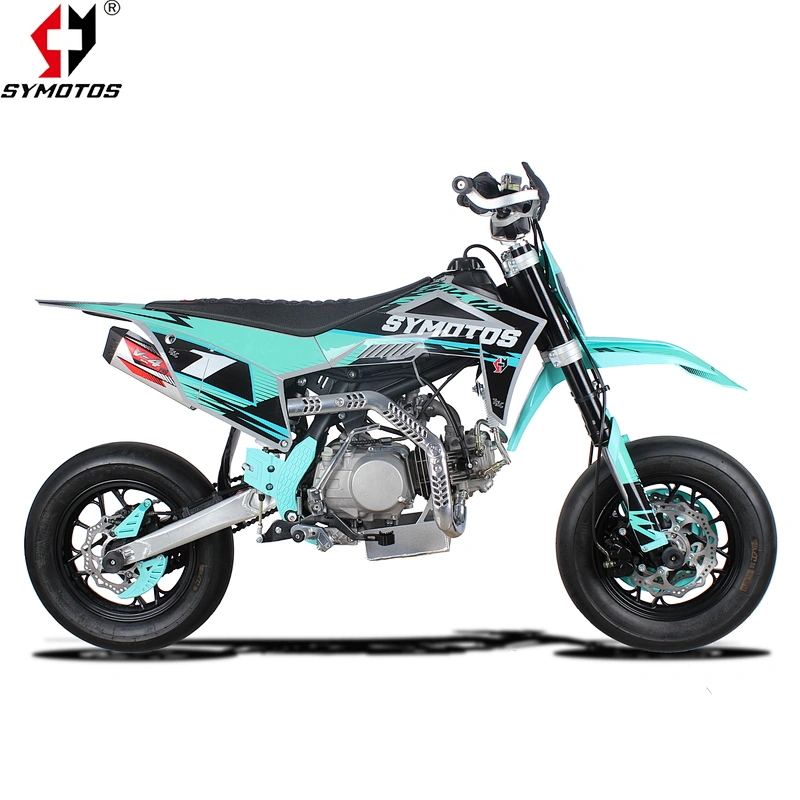

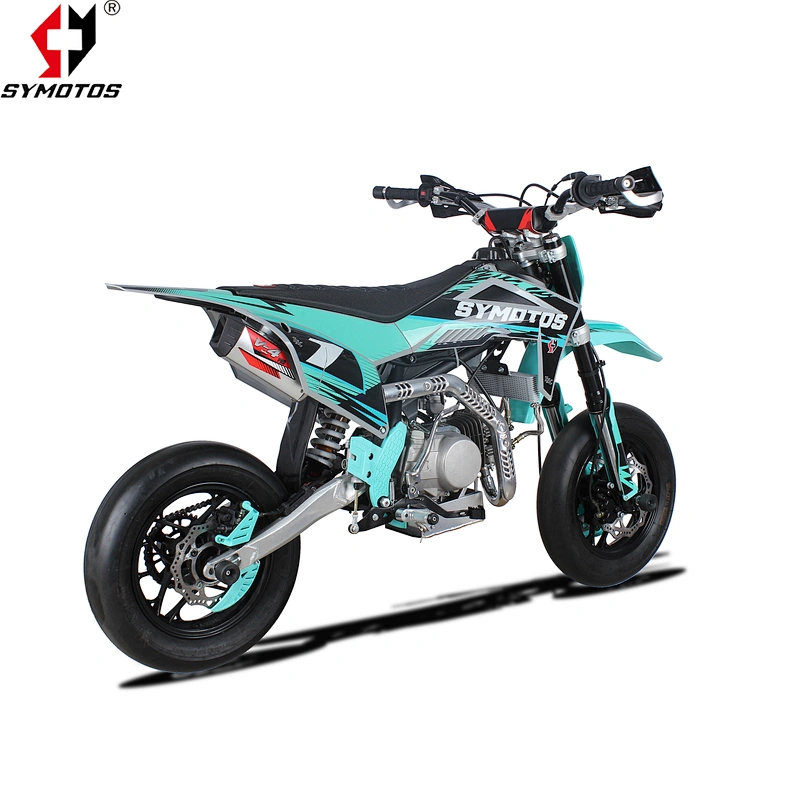

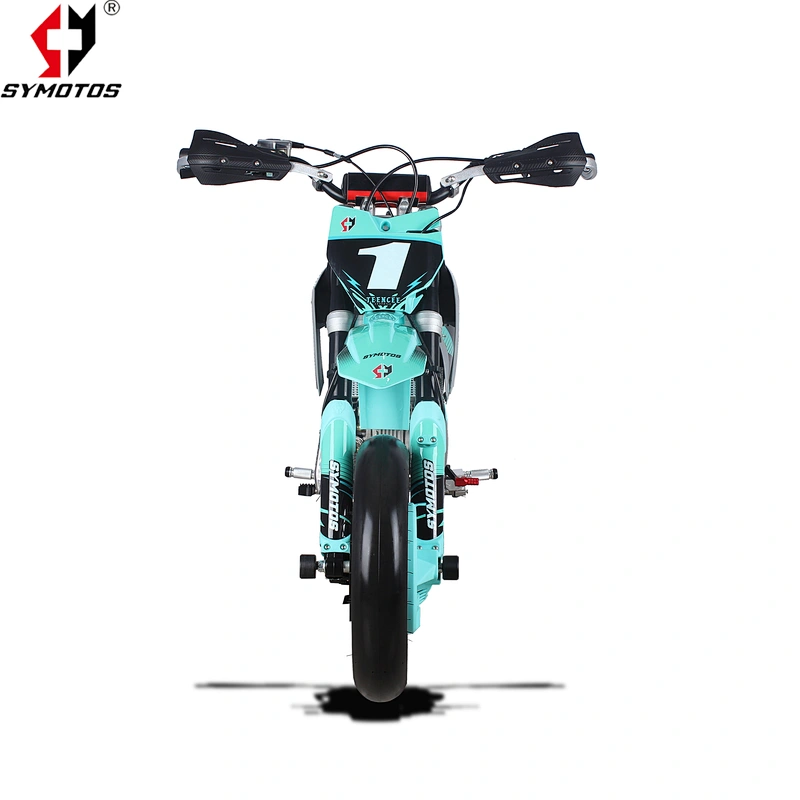

V2M symotos 140cc 12/12

Quantity:

ENGINE	V2M
Engine Type	YX140CC,Horizontal 、Single Cylinder、4 Stroke、Oil Cooler
Engine Displacement	140ml
Bore x Stroke	56mm
Starter	Kick
Clutch	Manual
Gear	N1234
Carburetor	ZY TZ28
Air filter	Inner Sponge Air Filter
Exhaust	SY New Muffler,Chrome Pipe With Anti-scalding Sheet
FRAME
Frame	SY KTM Double Tube Cradle Frame
Swing Arm	Aluminum Swing Arm
Handle Bar	Aluminum 28mm Handlebar
Footpegs	CNC Round Footpeg
Triple Clamp	SY New Forged Clamp,170mm Center Distance
Wheels Front	Spokeless Motard PRO 12 x 2.5
Wheels Rear	Spokeless Motard PRO 12 x 3.0
Tyres Front	CS Tubeless Tyre, 100/90-12
Tyres Rear	CS Tubeless Tyre, 120/80-12
Chain	SF 428H
Sprockets	FT: 14T / RR: 39T
Suspension Front	LC Inverted Fork, Non-adjustable
Suspension Rear	DNM-DHL Shock Double Adjustable With Air Bag
Brakes Front	Double Hydraulic Brake With 220mm Disc Rotor, Twin Piston Caliper
Brakes Rear	Hydraulic Brake With 220mm Disc Rotor, Single Piston Caliper
DIMENSIONS
Wheelbase（mm)	1230
Ground Clearance（mm)	190
Seat Height（mm)	760
Handlebar Height（mm)	1020
Net Weight（kgs)	80
Gross Weight（kgs)	90
Fuel tank	5.5L
Packing Size（mm)
Bike Size	1730×790×1020
QUANTITY
LOADING QTY-20FT	57Pcs
LOADING QTY-40HQ	132Pcs
