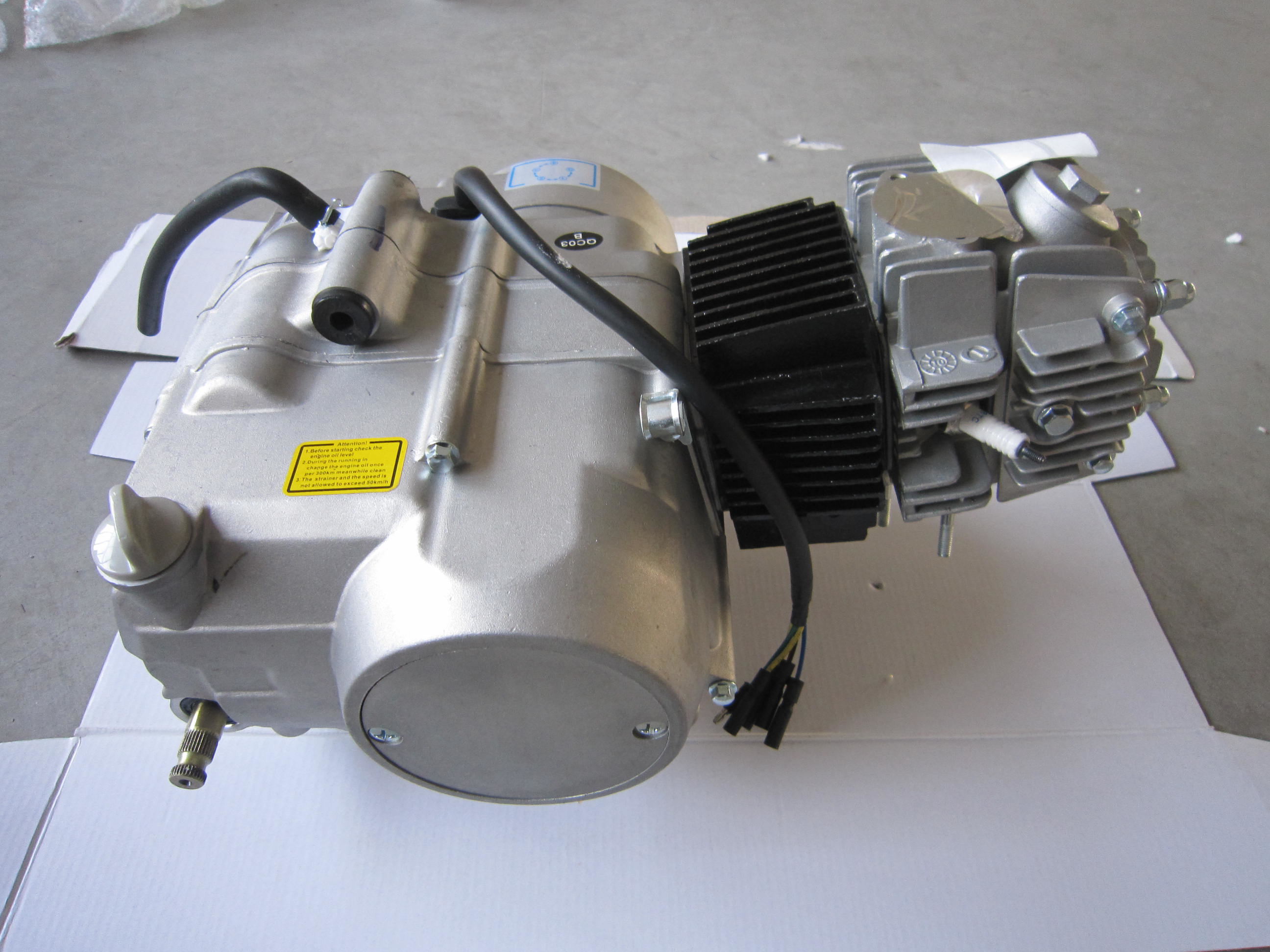

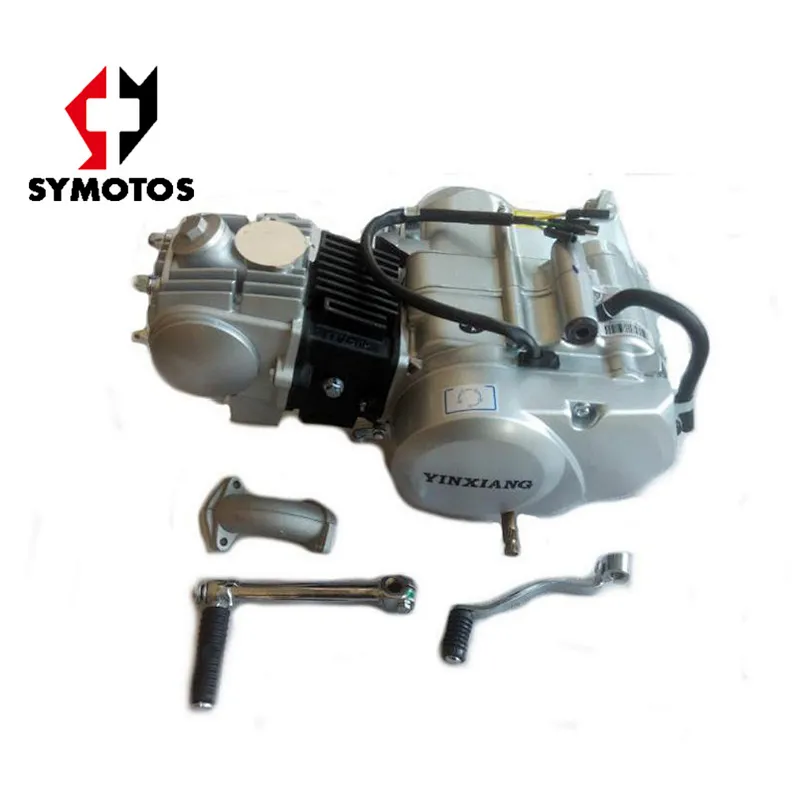

YX Engines, 125CC, kick start

• Place of Origin:CN;CHO
• Cylinder NO.:1 Cylinder
• Ignition Method:CDI
• Model Number:YX125kick
• Brand Name:YX
• Displacement (ml):124cc
• Start:Kick
• Stroke:2 Stroke
• Cold Style:oil cooler

1. Type: 4-stroke, air-cool, single cylinder, horizontal

2. Bore × stroke: 54×54

3. Total Displacement: 124ml

4. Compression Ratio: 9.0: 1

5.Max.Net Power/rpm: 5.2KW/8000±500r/min

6.Max.torque/rpm: 7N.m/5000±500r/min

7.Min. Fuel Consumption : ≤367g/KW.h

8.Ignition advance angle: BTDC 27º±2º

9.Valve clearance: 0.05±0.02mm

10.Fuel Grade: 90#GB484-89

11. Engine Oil Grade: SE: 15W/40

12.Engine Oil Consumption Rate: ≤ 8g/KW.h

13.Transmission Ratio: Primary: 3.722

1gear: 2.833 2gear: 1.761

3gear: 1.280 4gear: 0.958

14.Type of Spark plug: 1136 or 1137

15.Gap of Spark plug: 0.6-0.7

16.Ignition: C.D.I

17. Clutch: multi-plate oil bath Manual/automatic

18. Air Filter: Paper Filter

19. Lubrication: pressure and splash

20. Engine Oil Capacity: 0.9L

21. Starting: kick/electric

22. Sizes: 460mm* 300mm* 260mm

23. Net Weight: 20±1Kg
