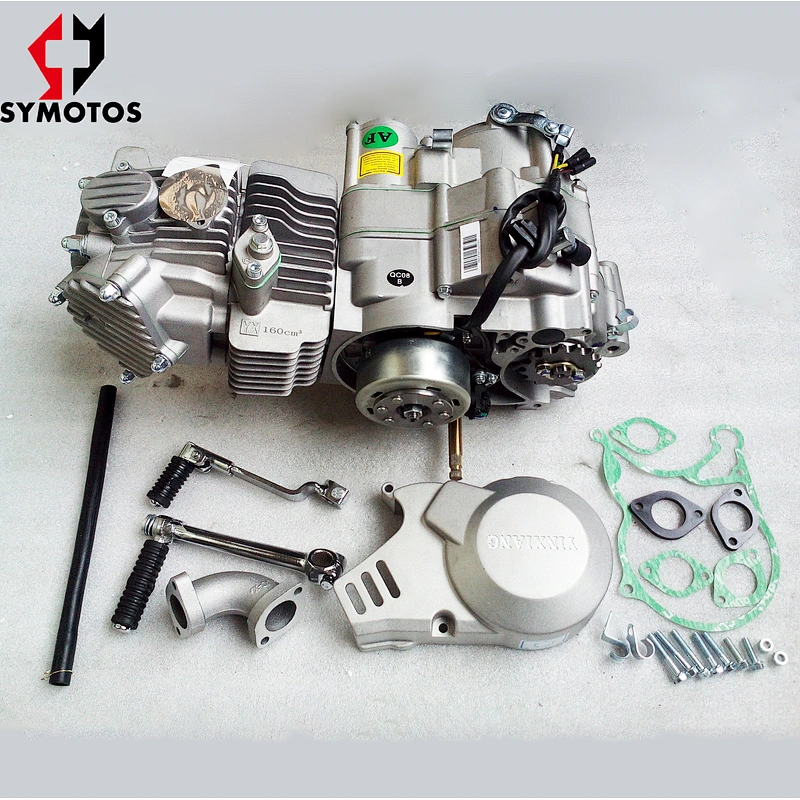

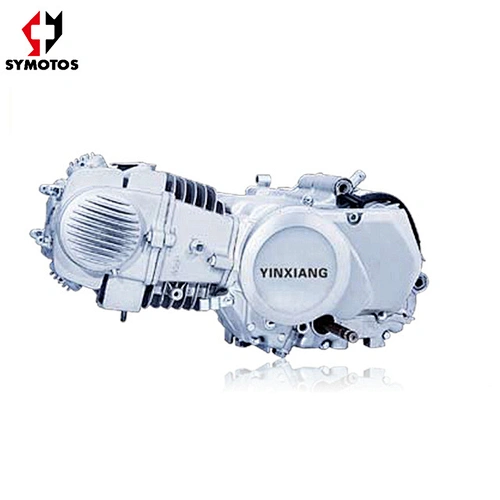

YX Engines, 160cc 4 valve

• Place of Origin:CN;CHO
• Cylinder NO.:1 Cylinder
• Ignition Method:CDI
• Model Number:YXWIN160-4V
• Brand Name:YX
• Cold Style:Air-Cooled
• Displacement (ml):160cc
• Start:Kick
• Stroke:4 Stroke

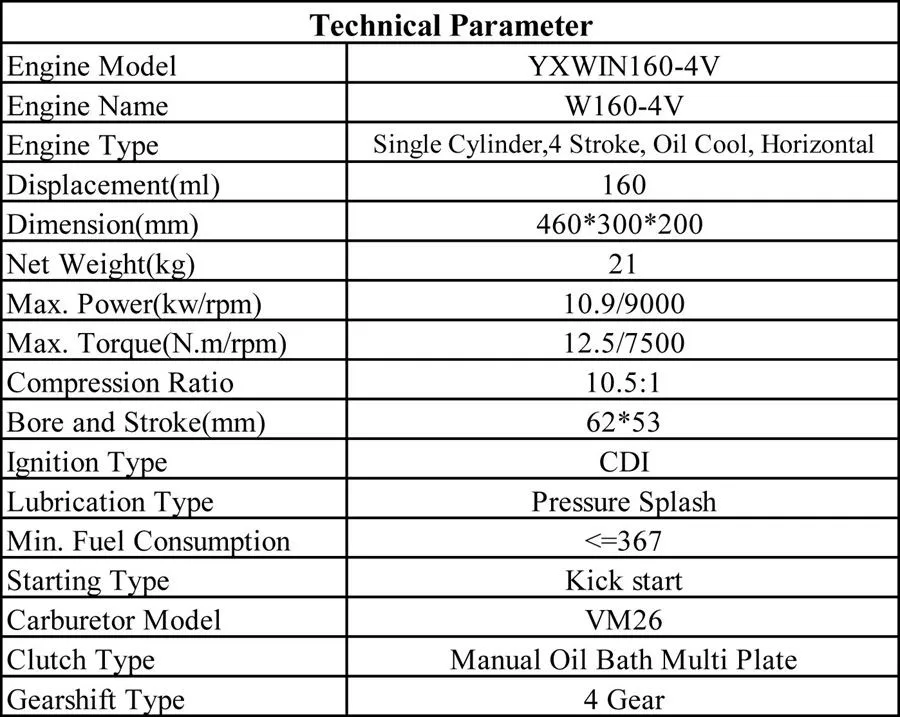

1. Type: 4-stroke, Oil Cooling, single cylinder, manual clutch, horizontal

2. Bore×stroke: 62×53

3. Actual Displacement: 160ml

4. Compression Ratio: 10.0: 1

5. Min. Power/rpm: 10.9KW/9500r/min

6. Max. torque/rpm: 12.5N.m/7500r/min

7. Min. Fuel Consumption: ≤367g/KW.h

8. Ignition advance angle: BTDC 15º±2º

9. Valve clearance: 0.05mm

10. Fuel Grade: 90# and above GB484-89

11. Engine Oil Grade: API SAE 15W/40-SF

12. Engine Oil Consumption Rate: ≤10g/KW.h

13. Transmission Ratio: Primary: 3.722(18/67)

1gear: 3.272(11/36) 2gear: 1.937(16/31)

3gear: 1.350(20/27) 4gear: 1.043(23/24)

14. Type of Spark plug: Y27FER-C

15. Gap of Spark plug: 0.6-0.7

16. Ignition: CDI

17. Clutch: multi-plate oil bath, Manual

18. Air Filter: Paper Filter

19. Lubrication: pressure and splash: max oil pressure 12Kg.f

20. Engine Oil Capacity: 950ml

21. Starting: kick start at any gear

22. Sizes(mm)435X285X235

23. Net Weight: 23±1Kg
