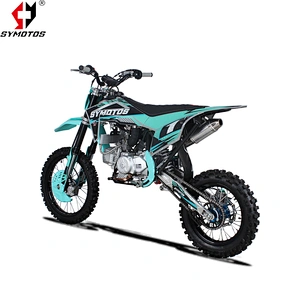

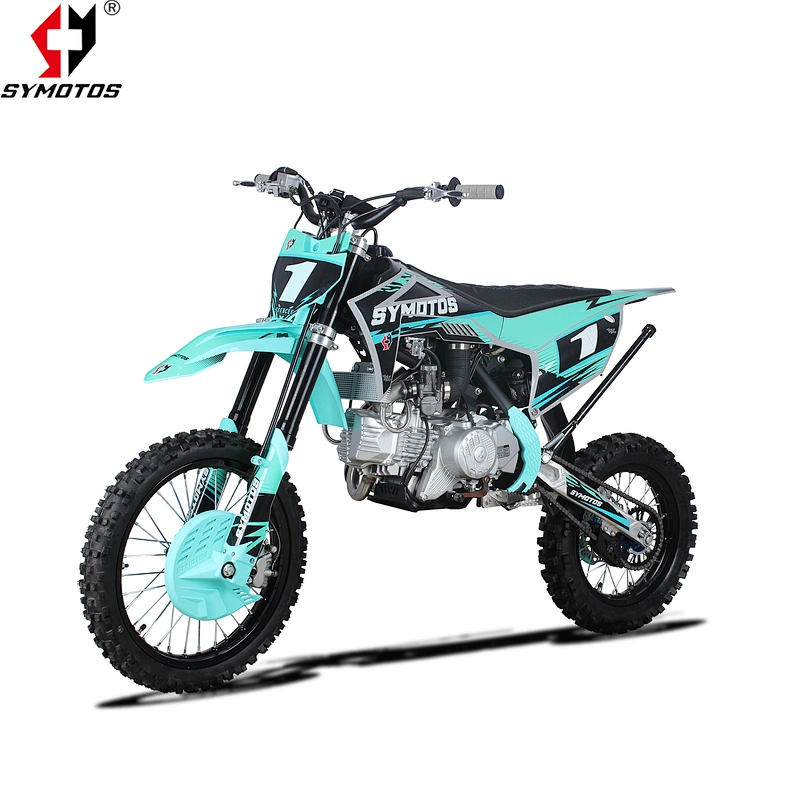

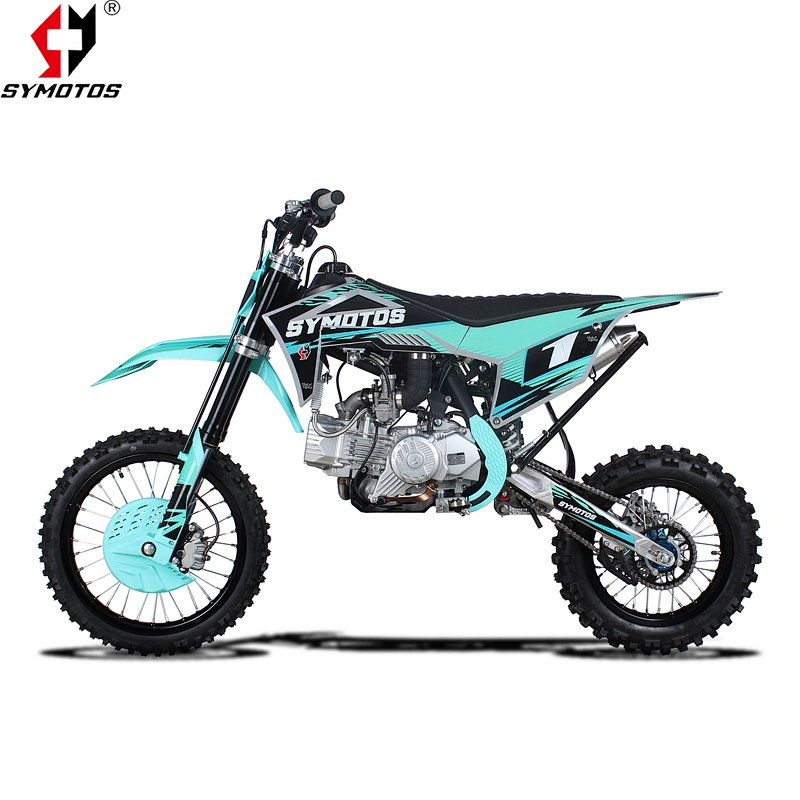

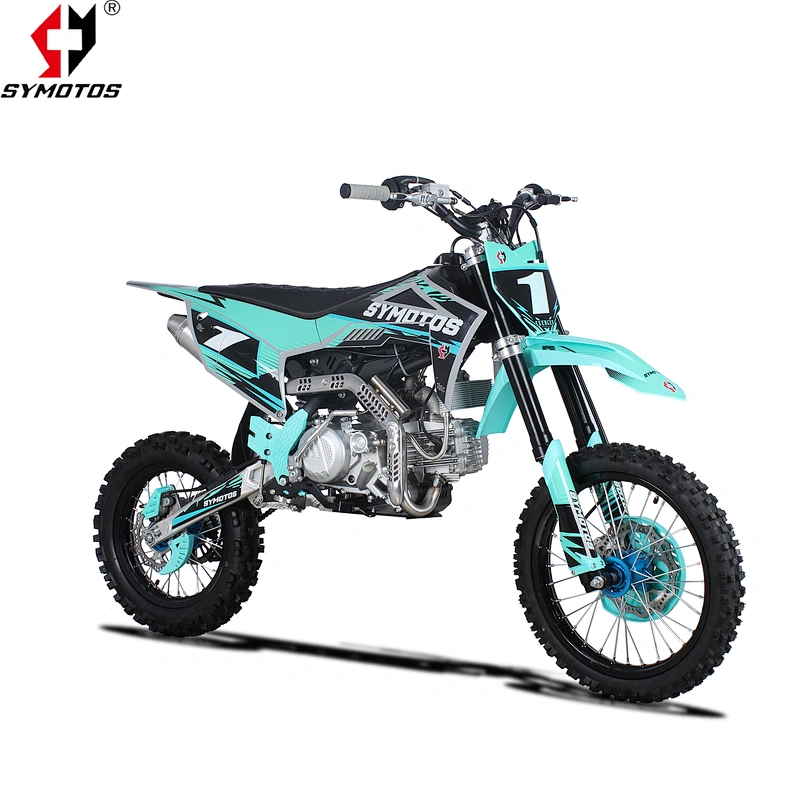

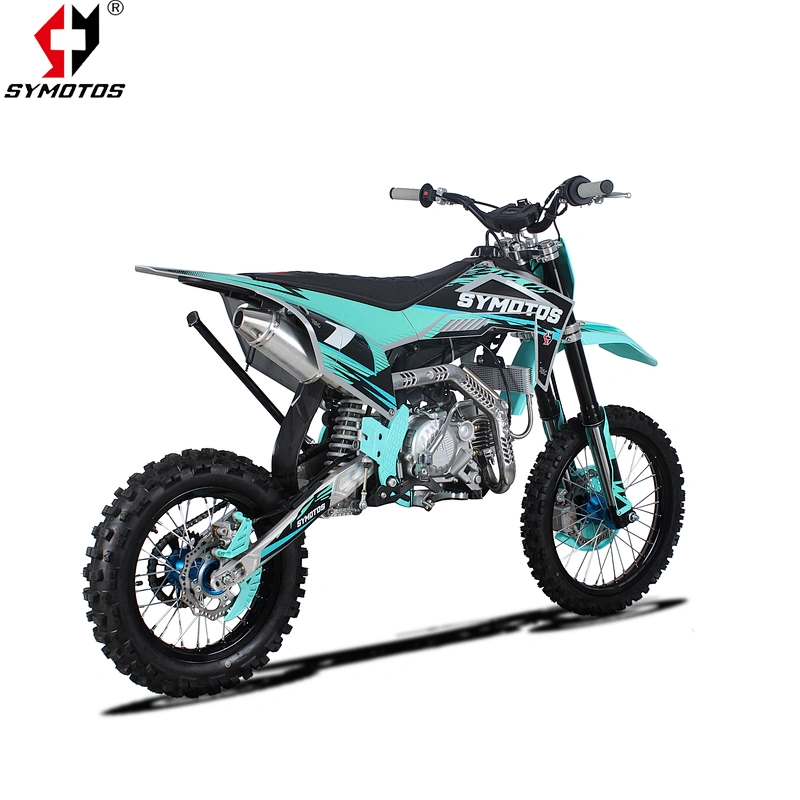

V2X symotos 212cc 17/14

Quantity:

ENGINE	V2X
Engine Type	ZS212CC,Horizontal 、Single Cylinder、4 Stroke、Oil Cooler
Engine Displacement	212ml
Bore x Stroke	66mm
Starter	Kick/Electric
Clutch	Manual
Gear	N1234
Carburetor	JK PE28
Air filter	Inner Sponge Air Filter
Exhaust	T4 muffler,304 Stainless Steel boom Pipe With Anti-scalding cover
FRAME
Frame	SY KTM Double Tube Cradle Frame
Swing Arm	Aluminum Swing Arm With Linkage
Handle Bar	Aluminum 28mm Handlebar
Footpegs	Stainless Steel Footpegs
Triple Clamp	CNC Triple Clamp ,170mm Center Distance
Wheels Front	1.60 x 17 7116 Aluminum Rim Black Color & CNC Hub With Oil Seal
Wheels Rear	1.85 x 14 7116 Aluminum Rim Black Color & CNC Hub With Oil Seal
Tyres Front	70/100-17 Kenda Tyre
Tyres Rear	90/100-14 Kenda Tyre
Chain	KMC 428H
Sprockets	FT: 15T / RR: 41T
Suspension Front	LC Inverted Fork, Double-adjustable
Suspension Rear	DNM-DHL Shock Double Adjustable With Air Bag
Brakes Front	Hydraulic Brake With 220mm Disc Rotor, Twin Piston Caliper
Brakes Rear	Hydraulic Brake With 220mm Disc Rotor, Single Piston Caliper
DIMENSIONS
Wheelbase（mm)	1300
Ground Clearance（mm)	330
Seat Height（mm)	850
Handlebar Height（mm)	1120
Net Weight（kgs)	86
Gross Weight（kgs)	96
Fuel tank	5.5L
Packing Size（mm)	1620×425×820 / 1440425650
Bike Size	1870×790×1150
QUANTITY
LOADING QTY-20FT	63Pcs (Fork Disassembly)
LOADING QTY-40HQ	172Pcs (Fork Disassembly)
